Moxa: Rugged Arm-based Cellular IIoT Gateways for Uninterrupted Connectivity

Moxa’s Arm-based computing family offers wireless-ready, compact, and fanless industrial computers built for space-critical automation applications. These computers are specially designed for long-term operation and come with both a 5-year hardware warranty and 10-year support for Moxa’s Industrial Linux, making them the ideal choice for remote monitoring and data acquisition applications.

Remote or distributed outdoor IIoT applications such as in solar energy, oil and gas, and water/wastewater require reliable IIoT gateways with low-to-high bandwidth cellular connectivity to collect and transfer edge data. The Moxa UC series Arm-based computers are ideal for these applications with their wide variety of cellular connectivity options, compact size for cabinet installation, wide-operating temperature range, and hazardous location certifications. Furthermore, these computers have been deployed in a wide selection of edge application scenarios in IIoT projects around the world.

Key Features

Wireless Ready

  • NB-IoT, LTE Cat. M1, Cat. 1, and Cat. 4 cellular connectivity
  • Wi-Fi and GPS support
  • RF and carrier approvals
  • Easy-to-use cellular management API

OT-to-Cloud Ready

  • Rich interfaces: LAN, serial, CAN, and DI/DO ports
  • MQTT support and easy cloud connectivity to AWS and Azure with ThingsPro software*

* Applies to select models. Refer to the ThingsPro product page for details.



Compact and Rugged

  • Palm-sized form factor for easy installation
  • -40 to 70°C operating temperature range with LTE
  • C1D2 and ATEX/IECEx Zone 2 certified

Long-term Support

  • Moxa Industrial Linux with 10-year long-term support*
  • Industry-leading 5-year hardware warranty



Featured Models:

UC-3111-T-US-LX

UC-3100 Series

Arm-based LTE Cat. 1 computer for US (AT&T), Wi-Fi a/b/g/n, 1 GHz CPU, 512 MB RAM, 4 GB eMMC, 2 Ethernet, 2 serial ports, 1 SD slot, 1 USB port and -30 to 70°C operating temperature

UC-8112A-ME-T-LX-US

UC-8100A-ME-T Series

Arm-based LTE Cat. 4 DIN-rail industrial computer for the US region (Verizon, AT&T, and TELUS) with 2 serial ports and 2 Ethernet ports

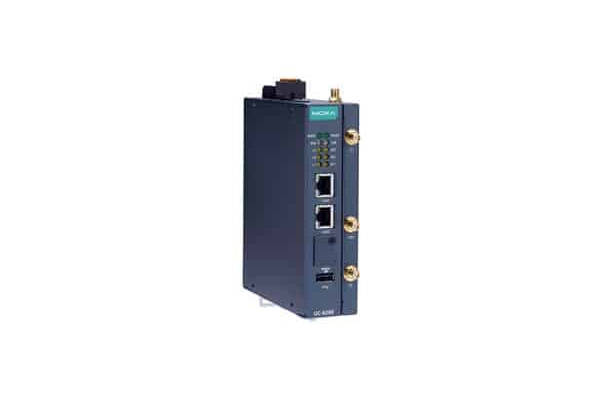

UC-8220-T-LX-US-S

UC-8200 Series

Arm Cortex-A7 dual-core 1 GHz IIoT gateway with built-in TPM module, US-region LTE Cat. 4 module preinstalled, 1 expansion slot for a Wi-Fi module, 1 CAN port, 4 DIs, 4 DOs, -40 to 70°C operating temperature

Applications

  • renewable energy
  • oil and gas
  • water and wastewater
  • machine monitoring





Call us at 800-214-0322 for more information on our Moxa solutions
