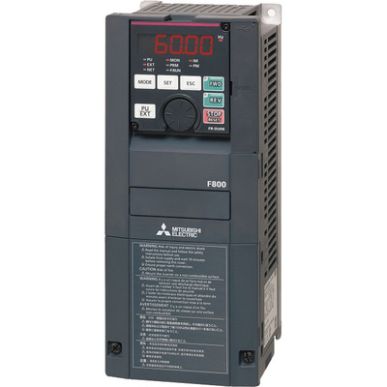

FR-F820-00490-3-N6
Mitsubishi Electric
FR-F820-00490-3-N6
Variable Frequency Drive, 240VAC 3PH, 49A, 11KW, 15HP(SLD), RS-485
$1
Accessories
| Product | Part # | Description | Price | Action |
|---|---|---|---|---|
|
FR-CONFIGURATOR2
|
Software, VFD Configuration, 800 Series
|
$1
|
|
|
MR-J3USBCBL3M
|
Programming Cable, USB-A to USB-Mini-B, 3.0M
|
$1
|
|
|
FR-PU07
|
Keypad: Panel Mount, Liquid Crystal Display
|
$1
|
|
|
FR-CB201
|
Cable for Keypad, 1M
|
$1
|
|
|
FR-CB202
|
Cable for Keypad, 3M
|
$1
|
|
|
FR-CB203
|
Cable for Keypad, 5M
|
$1
|
|
|
FR-A8NCG
|
Expansion Module : CC-Link IE TSN communication
|
$1
|
|
|
A8NEIP-2P
|
Expansion Module : Ethernet/IP communication, ICC, RJ45 (2x)
|
$1
|
|
|
A8NPRT-2P
|
Expansion Module : ProfiNet communication
|
$1
|
|
|
A8NECT-2P
|
Expansion Module : EtherCAT communication
|
$1
|
|
FR-CONFIGURATOR2
Software, VFD Configuration, 800 Series
$1
MR-J3USBCBL3M
Programming Cable, USB-A to USB-Mini-B, 3.0M
$1
FR-PU07
Keypad: Panel Mount, Liquid Crystal Display
$1
FR-CB201
Cable for Keypad, 1M
$1
FR-CB202
Cable for Keypad, 3M
$1
FR-CB203
Cable for Keypad, 5M
$1
FR-A8NCG
Expansion Module : CC-Link IE TSN communication
$1
A8NEIP-2P
Expansion Module : Ethernet/IP communication, ICC, RJ45 (2x)
$1
A8NPRT-2P
Expansion Module : ProfiNet communication
$1
A8NECT-2P
Expansion Module : EtherCAT communication
$1
Product Specification
Downloads
Brand
Mitsubishi Electric
Product Family
F800
Type
Standard IO
Built-In PLC
6K steps
Expansion Slots
3
Communication
BACnet MS/TP, Mitsubishi Inverter Protocol, Modbus RTU
Control Mode
V/F, Flux Vector, Permanent Magnet Sensorless Vector
Brake Transistor
No
Nominal Input Voltage
240 VAC
Input Phases
1, 3
Duty Definition: SLD
110% rated current for 60s, 120% rated current for 3s
Horsepower Rating: SLD
15 HP
Amperage_Rating: SLD
49.0A
Duty Definition: LD
120% rated current for 60s, 150% rated current for 3s
Horsepower Rating: LD
15 HP
Amperage_Rating: LD
45.0A
Inputs: Digital
10
Inputs: Analog
2
Outputs: Digital
4
Outputs: Analog
2
Outputs: Relay
2
Safety IO
STO
Safety Over Network
No
IP Rating
IP20 - UL Type 1
