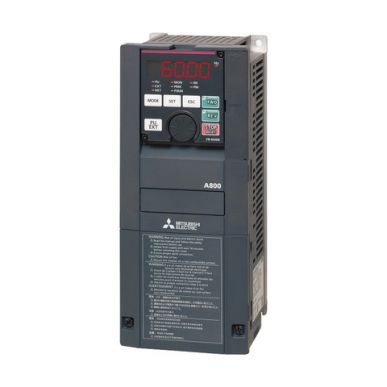

FR-A860-02430-E160
Mitsubishi Electric
FR-A860-02430-E160
Variable Frequency Drive, 600VAC 3PH, 152.0A, 110KW, 150HP(ND), Ethernet (1x), IE Field Basic
$1
Accessories
| Product | Part # | Description | Price | Action |
|---|---|---|---|---|
|
FR-CONFIGURATOR2
|
Software, VFD Configuration, 800 Series
|
$1
|
|
|
MR-J3USBCBL3M
|
Programming Cable, USB-A to USB-Mini-B, 3.0M
|
$1
|
|
|
FR-A8NCG
|
Expansion Module : CC-Link IE TSN communication
|
$1
|
|
|
A8NEIP-2P
|
Expansion Module : Ethernet/IP communication, ICC, RJ45 (2x)
|
$1
|
|
|
A8NPRT-2P
|
Expansion Module : ProfiNet communication
|
$1
|
|
|
A8NECT-2P
|
Expansion Module : EtherCAT communication
|
$1
|
|
|
FR-A8AL
|
Expansion Module-Encoder: Vector control, Orientation control, Encoder feedback control, Position Control
|
$1
|
|
|
FR-A8AP
|
Expansion Module-Encoder: Vector control, Orientation control, Encoder feedback control
|
$1
|
|
|
FR-A8APA
|
Expansion Module-SinCos Encoder: Vector control, Orientation control, Encoder feedback control
|
$1
|
|
|
FR-A8APS
|
Expansion Module-EnDAT Encoder: Vector control, Orientation control, Encoder feedback control, Position Control
|
$1
|
|
|
FR-A8APR
|
Expansion Module-Resolver: Vector control, Orientation control, Resolver feedback control
|
$1
|
|
FR-CONFIGURATOR2
Software, VFD Configuration, 800 Series
$1
MR-J3USBCBL3M
Programming Cable, USB-A to USB-Mini-B, 3.0M
$1
FR-A8NCG
Expansion Module : CC-Link IE TSN communication
$1
A8NEIP-2P
Expansion Module : Ethernet/IP communication, ICC, RJ45 (2x)
$1
A8NPRT-2P
Expansion Module : ProfiNet communication
$1
A8NECT-2P
Expansion Module : EtherCAT communication
$1
FR-A8AL
Expansion Module-Encoder: Vector control, Orientation control, Encoder feedback control, Position Control
$1
FR-A8AP
Expansion Module-Encoder: Vector control, Orientation control, Encoder feedback control
$1
FR-A8APA
Expansion Module-SinCos Encoder: Vector control, Orientation control, Encoder feedback control
$1
FR-A8APS
Expansion Module-EnDAT Encoder: Vector control, Orientation control, Encoder feedback control, Position Control
$1
FR-A8APR
Expansion Module-Resolver: Vector control, Orientation control, Resolver feedback control
$1
Product Specification
Downloads
Brand
Mitsubishi Electric
Product Family
A800
Type
Ethernet
Built-In PLC
6K steps
Expansion Slots
3
Ethernet Ports
1
Communication
CC-Link IE Field Basic, MODBUS/TCP
Control Mode
V/F, Flux Vector, Sensorless Vector, Vector, Permanent Magnet Sensorless Vector
Brake Transistor
Yes
Nominal Input Voltage
600 VAC
Input Phases
3
Duty Definition: SLD
110% rated current for 60s, 120% rated current for 3s
Horsepower Rating: SLD
250 HP
Amperage_Rating: SLD
243.0A
Duty Definition: LD
120% rated current for 60s, 150% rated current for 3s
Horsepower Rating: LD
200 HP
Amperage_Rating: LD
221.0A
Duty Definition: ND
150% rated current for 60s, 200% rated current for 3s
Horsepower Rating: ND
150 HP
Amperage_Rating: ND
152.0A
Duty Definition: HD
200% rated current for 60s, 250% rated current for 3s
Horsepower Rating: HD
125 HP
Amperage_Rating: HD
131.0A
Inputs: Digital
10
Inputs: Analog
2
Outputs: Digital
4
Outputs: Analog
2
Outputs: Relay
2
Safety IO
STO
Safety Over Network
No
IP Rating
IP00
Similar To
FR-A860-110K-E1
